A trendy exterior coating colorful series, following this trend ‘Color the kitchen ’
OCR coating, which is designed to fit on the exterior of kitchen appliances.

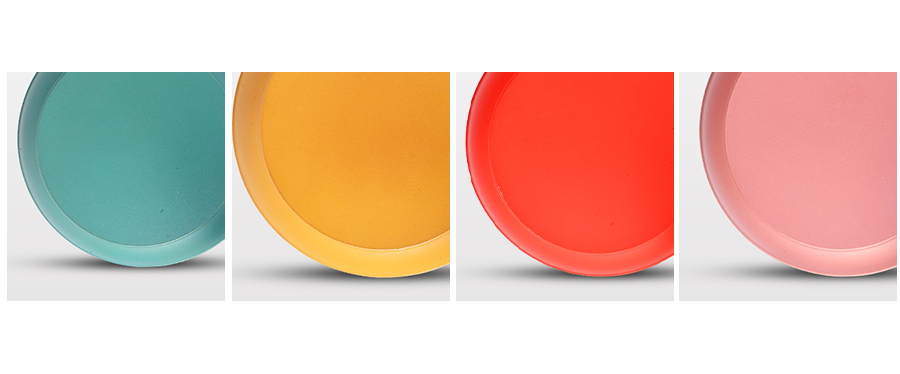

We created diversity color that is hard to express in the existing Teflon.
It does not scratch easily and highly washable coating because of the non-stickiness, the cleaning property is also better.
It is a combination with inorganic ceramic for superior heat resistance and abrasion resistance.
OCR coating has the advantage of a Teflon coating and is highly functional It's an environmentally friendly coatings, PFOA Free, PFOS Free, Heavy metals Free.
Darong cooperates with a well-known international testing institution(SGS), to ensure that products and services comply with global standards and local regulations, and we can tell you or your end clients. It is proved that the OCR coatings are in line with domestic and international standards and specifications.
| Test items | Test method | Test results |
| Hardness | The pen core is flattened, and the line is drawn by the gravity of 1KG at an angle of 45° | 4H |
| Wearable | Use 3M scouring pad 0.5KG to test the wear resistance (2000 times the scouring pad) | 10,000 times (a little revealing) |
| Adhesion | Use a knife to draw and cut horizontally and vertically. Use 3M tape to remove and paste it repeatedly 10 times. | Normal |
| Heat resistance | Temperature 200~340℃ Whether it changes color after heating for 3 minutes | Normal |
| Oil resistance | Put soybean oil at 200℃ for 8 hours and take it out to see if it changes | Normal |
| Salt water resistance | The internal temperature of the salt spray equipment is set to 40 ± 2 ℃ , NaCl 10% spray | Normal (72 hours) |
| Cleanability | Add 100 grams of milk to the pot and use the gas to bake it and wipe it clean | Normal |
| Spraying method | 2 spray 1 baking (primer, topcoat – wet spray wet) |
| Primer sintering temperature and film thickness | 400~420℃ X 20 minutes / 15~20㎛ |
| Topcoat sintering temperature and film thickness | 400~420℃ X 20 minutes / 5~10㎛ |
| Finished film thickness | 25~30㎛ |
| Cleanability test | Ok |
| Abrasion test | 10,000 times |
| Salt water resistance test | 72 hours |
| Adhesion test | Ok |
| Heat resistance test | Ok |
