Dyflon ceramic coating is produced by Sol Gel method, which is a liquid Ceramic. The main ingredients of ceramic coating are SiO2, Al2O3, and TiO2.
The coating compounds are inorganic substances in combination with physical and chemical structures. It is harmless to humans, while providing fine heat resistance, superior abrasion resistance, and good nonstick performance.
It also emits infrared radiation at high temperatures, thus it can make dishes tastier and healthier.
Dyflon ceramic is not only affective when applied to cookware, but also it can be applied to various industrial products such as hair straighteners, and heaters.
Darong cooperates with a well-known international testing institution(SGS), to ensure that products and services comply with global standards and local regulations, and we can tell you or your end clients. It is proved that the DT30C are in line with domestic and international standards and specifications.

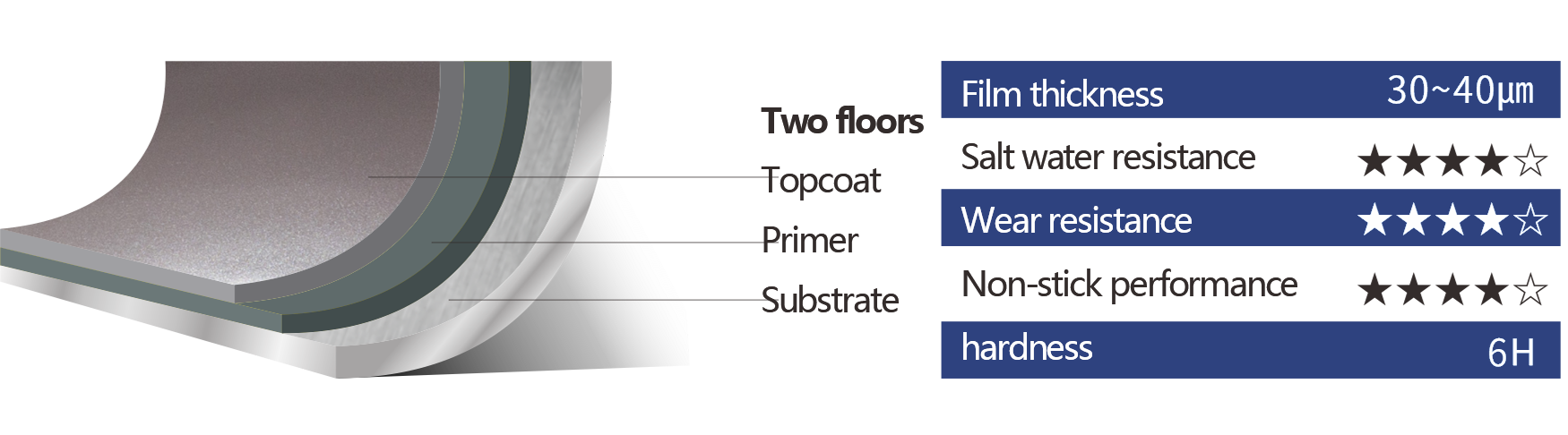

| Item | Testing Method | Result |
| Hardness | Check if coating film will cause crack with 1KG pressure stroke at 45 ° inclination by MITSU_BISHI brand HB~9H pencil. | General material:5~6H Die-casting pan: 8~9H stainless steel pan: 9H |
| Adhesio | Use knife to cut 20×20mm then after covered adhesive tape, vertical peel. | 100/100 |
| Impact resistance | Let 300±1g Steel Ball vertical fall from 30 cm height. | normal |
| Water resistance | Use running water filling 3/4 volume, keep 72 H. | normal |
| Solvent resistance | Use methyl alcohol, CH3CH2OH, IPA etc filling 3/4 volume, keep 72 H. | normal |
| Saltwater corrosion resistance | Pure water make 10﹪NaCl solution, add to pan over 1/2 height and heated to boiling, then keep Boiling 24H. | normal |
| Acid resistance | 5﹪H2SO4 soak 24 H. | normal |
| Alkali resistance | 5﹪NaCO3 soak 24 H. | normal |
| Non-stick |
Wash with clean water, pour a cup of milk into pan,heating until the liquid evaporation, after formation of carbonized layer continues heating until the. formation of uniform brown and cause smoke, then use running water by 135°angle, carbonized layer should be washed away completely, 5 circles. |
normal |
| Wear resistance | Add 5% washing-up liquid into pan, use 3M scouring pad with 3KG pressure friction back and forth on the abrasion machine( coating thickness is about 35㎛). | More than10000 cycles |
| Heat andquenching resistance | Sample preparation heating to 300℃ then immerse into warm water, 10 circles, coating film should be no expansion, no cracking, no peel off. | normal |
浙公网安备33020602000690号
