Sensor Coating

Product description

Excellent abrasion resistance and salt water resistance.

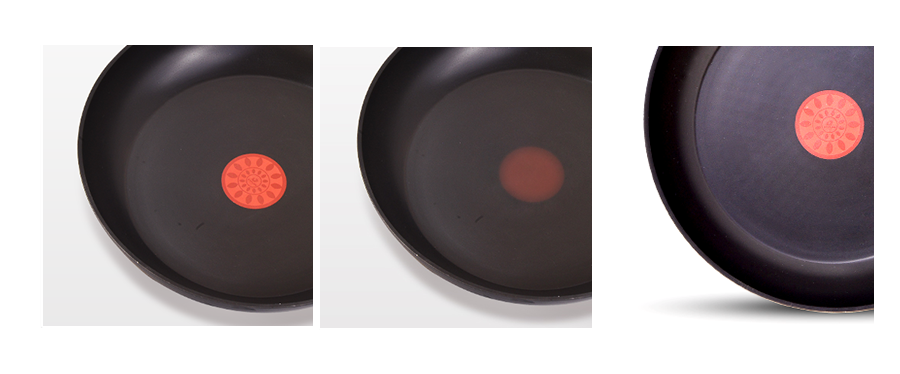

It can prompt suitable temperature by the way the pattern disappears when cooking.

Good thermal conductivity,Can heat up quickly in a short time by adding Graphene inside, Graphene also makes the coating performance more stable and has sterilizing effect.

For health and environmental protection, PFOA-free, heavy metals free.

Application

Product Usage

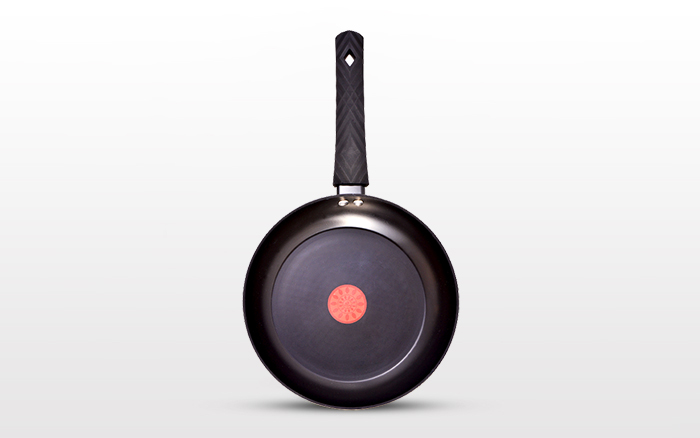

Aluminum soup pot, frying pan, die-casting pot.

Certification

Darong cooperates with a well-known international testing institution(SGS), to ensure that products and services comply with global standards and local regulations, and we can tell you or your end clients. It is proved that the Sensor Coating coatings are in line with domestic and international standards and specifications.

Application and Feature

Test content Test method Test results
Pencil test The pen core is flattened, and the line is drawn by the gravity of 1KG at an angle of 45°. Above 3H
Abrasion resistance Use 3M scouring pad 1.5KG to test wear resistance.
Adhesion test Cross-cut on the coating surface at a pitch of 1 mm, press and adhere with 3M tape, and peel off repeatedly more than 10 times. Normal
Water resistance Boil for 8 hours and let it cool down naturally. Normal
Oil resistance Put the soybean oil at 200℃ for 8 hours and take it out to see if it changes. Normal
Salt water resistance After setting the internal temperature of the salt sprayer to 40±2℃, spray a solution containing 10% sodium chloride. 120 hours (72 hours as the standard)
Not sticky After the surface temperature reaches 80°C, perform a non-fried egg test. After the surface .temperature reaches 160~170°C, check whether the eggs can be easily separated from the frying pan. Normal

Stain resistance
Boiled milk No discoloration (3 times)
Barbecue No discoloration (3 times)
Fried fish No discoloration (5 times)
